Product description

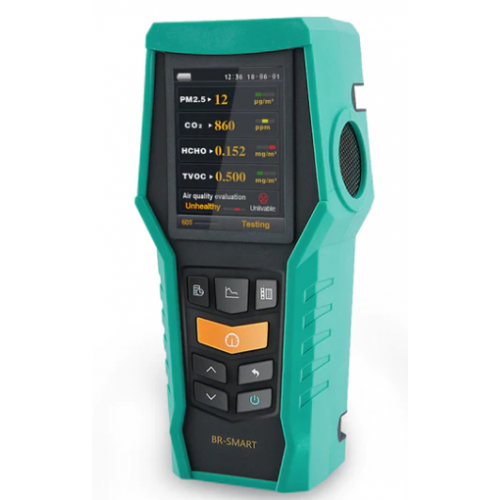

JC LAB BR-Smart series is a real-time air quality monitoring instrument used to detect air quality of indoor environment.

Smart series monitor use high-precision sensor and translate the pollutant concentration in the air directly into intuitive data to provide air quality monitoring information and effective protection for your family health.

The advanced core technology adopts high precision import sensor, the sensor drift error is the lowest in the industry, through the patented algorithm can eventually accurately distinguish virus-level particulate matter.

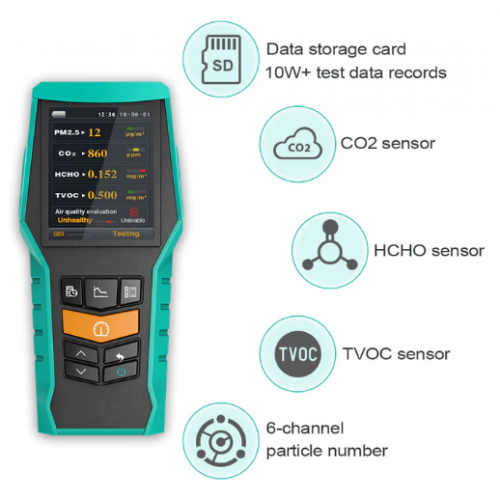

SMART series can detect a variety of pollutants, including PM2.5, PM10, formaldehyde, TVOC , CO2 etc.

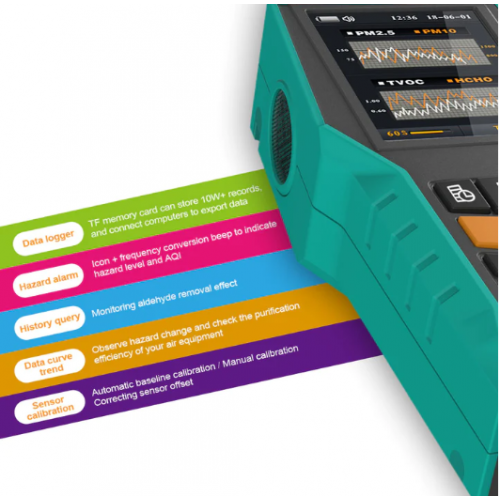

More set up a professional man-machine interface interaction, accurate display of data change curve, external TF memory function, maximum support 8G TF card, storage capabilities more powerful, can clearly monitor the air.

Product Highlight

• More Sensitive—High-precision Laser Sensor, accurate resolution of 0.25ug / M3 particles
• More Authoritative—PM 2.5 / PM10 adopts patent algorithm in cooperation with CMA
• More accurate—High precision formaldehyde sensor, accurate resolution of 0.01mg/m3 free formaldehyde molecules
• More credible—High-performance TVOC sensor imported from FIGARO

Product Features

1. Can detect a variety of pollutants, including PM2.5, PM10, formaldehyde, TVOC, CO2 etc.

2. 2.4-inch large screen, grainy low, high pixel, large visual range

3. Active air interactive system, silent fan, lower noise, longer life expectancy

4. Sampling work more than 10 hours, long standby 30 days without charging

5. Accurate data curve drawn, the trend of air changes at a glance

6. TF external memory card expansion, can store up to more than 10,000 records

7. Dimensions: 65×140×40mm Weight: 220g

Technical Specification

PM1.0/PM2.5/PM10

Measuring Method: Light scattering measurement

Mode: Auto

Measuring Range: 0-999μg/m3

Resolution : 1.0μg/m3

CO2

Measuring Method: NDIR measurement

Mode: Auto

Measuring Range: 400-2000ppm

Resolution : 1ppm

Formaldehyde

Measuring Method: electrochemical sensor measurement method

Mode: Auto

Measuring Range: 0-1.0mg/m3

Resolution : 0.01mg/m3

TVOC

Measuring Method: semiconductor sensor test

Mode: Auto

Measuring Range: 0-9.99 mg/m3

Resolution : 0.01 mg/m3

Instructions for Use:



1. How to enter the 6-channel particle number interface

Click the data curve button to switch between particle number and curve mode



2. What data does the memory card record?

TF memory card can record 4 items displayed on the numerical interface: (128s: PM2.5, CO2, TVOC, HCHO)



3. Ventilation of the machine for the first time and unused for a long time

When the machine is used for the first time and not used for more than 7 days, it needs to be placed in a well-ventilated environment for 8 hours. <br> In other cases, the detector can be used after being turned on. To ensure accurate readings, please take more than 20 minutes to start reading.



4. Questions about power-on readings

After the air monitor is turned on, the sensor needs to warm up and start reading.

The detector can adjust the warm-up time automatically according to the using time interval.

The general warm-up time is 1-3 minutes, and the long time unused warm-up time is 3- 5 minutes.



5. About battery charging

The machine screen does not prompt for charging information when it is
turned off for charging, it can be fully charged after 4-5 hours in the OFF state.

You can use the mobile phone charging head to connect the charging cable in the product package to charge.

If you need to measure for a long time, please connect a charger or a mobile power supply.



Packing List:
1 * Air Quality Detector
1 * Cable
