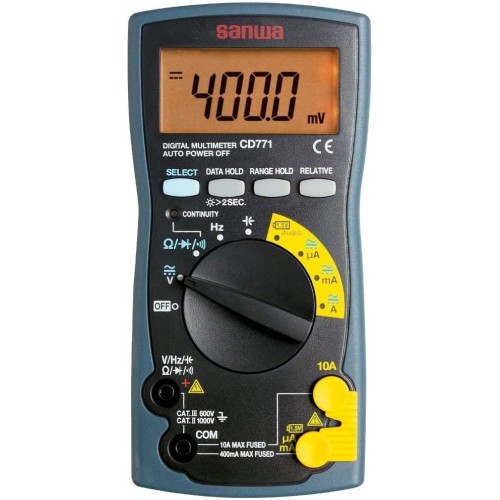

Description
- 4000 counts
- Easy to read large LCD with backlight
- Large breaking capacity fuse 30kA
- 1.5V battery check function
- Thermo plastic elstomer, high resistance against drop shock
- Safety cap on current terminal
- Auto power off (30min.)(cancelable)
| CD771 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/1000V | ±(0.5%+2) | 0.1mV | 10M～100MΩ |
| ACV | 4/40/400/1000V | ±(1.2%+7) | 0.001V | 10M～11MΩ |
| DCA | 400μ/4000μ/40m/400m/4/10A | ±(1.4%+3) | 0.1μA | |
| ACA | 400μ/4000μ/40m/400m/4/10A | ±(1.8%+5) | 0.1μA | |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(1.2%+5) | 0.1Ω | |
| Capacitance | 50n/500n/5μ/50μ/100μF | ±(5%+10) | 0.01nF | |
| Frequency | 5/50/500/5k/50k/100kHz | ±(0.3%+3) | 0.001Hz | |
| Continuity | Buzzer sounds and LED lights up at between 0Ω and 85Ω（±45Ω）. Open voltage:Approx.0.4V | |||
| Diode test | Open voltage:approx.1.5V | |||
| Battery Check | Approximate value（30Ω load）1.5V battery only | |||
| Display | numeral display 4000 |
| Sampling rate | 3 times/sec. |
| Bandwidth | 40～400Hz（Sine wave) |
| Fuse | 0.5A/1000V 30kA Φ6.35×32mm 10A/1000V 30kA Φ10×38mm |
| Battery | R6Px2 |
| Battery life | Approx.400h (manganese battery) at DCV range |
| Size/Mass | H166×W82×D44mm/360g |
| Safety | IEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V |
