Descriptions:

This heavy, stainless steel pipe, when insert a metal alloy screen into one end. By heating the screen with a flame from a burner for about 10 seconds, the vertical pipe will produce a loud tone for as much as 30 seconds. The noise is produced because certain frequencies of sound from the turbulent flow of heated air resonate within the tube cavity. Turning the tube horizontally disrupts the flow of air and the sound stops; rotating the tube to the vertical position returns the sound.

Demonstration:
By heating the metal screen in one end of this vertically held pipe for about 15 seconds, a loud tone is produced for as much as 30 seconds. During this time, if the pipe is rotated to a horizontal position, the sound will stop. When returned to the vertical position, the sound begins again.

Materials:
In addition to the Singing Pipe, you will need a gas flame from a Bunsen burner and metal alloy screen.

Procedure:
With the pipe held vertically, insert the metal alloy screen is on the bottom, carefully move the pipe over a gas flame so that the flame enters the pipe. After about 15 seconds, remove the pipe from the flame, and continue holding it vertically. For about 30 seconds, a loud tone is heard and the hot turbulent resonating air can be felt exiting the top of the pipe. Be careful, as the bottom of the pipe nearest the flame can become quite hot. Alternatively, you can pretend to pour the sound out into a container. When the pipe is held horizontally, the sound stops. You can then pretend to pour the sound back into the top of the pipe as you rotate if back to the vertical position. The sound will then return.

Explanation:
The flame heats the special stainless steel screen, which has been inserted into one end of the metal pipe. This glowing hot screen heats the air inside of the pipe, causing hot air to rise, and cool air to enter the bottom end. Because the air passes through many holes in the screen, a turbulent flow pattern of air fills the pipe. The noise is produced because certain frequencies of sound from the turbulent flow of heated air resonate within the pipe cavity. This is similar to the operation of a pipe organ. The longer the pipe, the lower the resonant frequency.

When the Singing Pipe is rotated horizontally, this flow pattern is distributed and air no longer passes through the tube. Returning the pipe to the vertical position returns the sound.

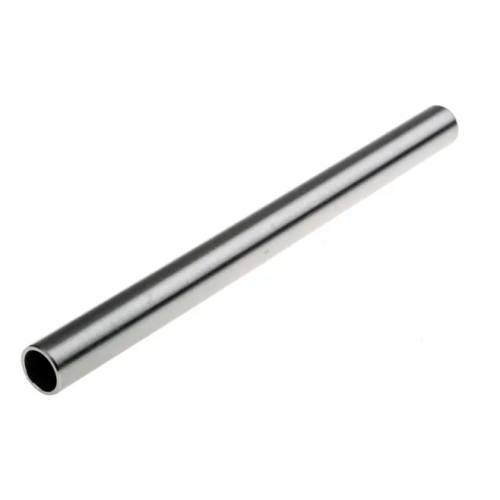

Size of tube: OD 35mm x ID 32mm x 1meter

Material of tube: stainless steel
